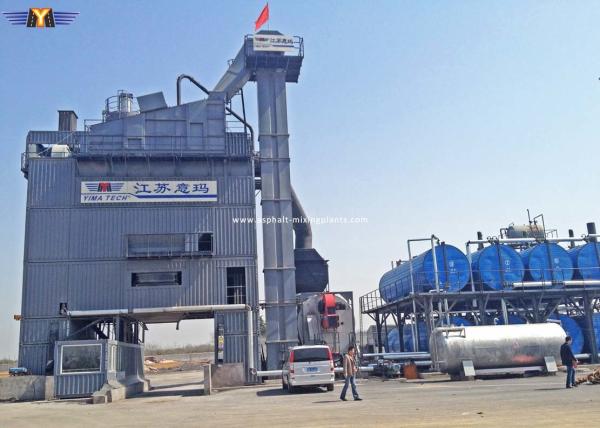

YIMA Hot Mix Bitumen Plant Asphalt Batching Plant for Municipal
Road Construction
» Main Application
YIMA group has now manufactured and sold 300+ asphalt plants,
providing great solutions for practically all sectors.
This plant CSM320 is applied in the projects of road of all grades,
expressway, municipal road, airport runway, dams and other places,
with its high quality, thoughtful after-sales service.
» Technical Parameters of Asphalt Mixing Plant
| Main Technical Parameters of CSM320 Asphalt Mixing Plant |
| Model | CSM320 |
| Rated Output (t/h) | 320 |
| Power (kW) | 660 |
| Floor Area (m3) | 38*27 |
| Cold Bin (m3) | 6x15 |
| Burner MW | 24 |
| Fuel | Diesel oil, heavy oil, fuel oil, coal, natural gas |
| Hot Bin (m3) | 53 |
| Row of powder concentration | ≤20mg/Nm3 |
| Mist and dust blackness | Ringelman Blackness: Grade I |
Screen Series | 6 |
| Mixing Capacity (kg) | 4250 |
| Control System | Fully automatic computer control (Industrial PC+PCL+dual color
screen+laser printing+heating and cooling air conditioning) |
» Features of Asphalt Mixing Plant
1. Smaller occupied working area, compact structure, it solves the
difficulties due to lack of space.
2. Container structure, easy to be installed and maintenance,
convenient to transport and transfer.
3. BV (BUREAU VERITAS) Certificate, cut 50% of transportation cost.
4. International renowned brand components, high stability and
reliability, effectively guaranteed the quality.
5. Environmental and Energy saving, safe and easy for operate.
6. Remote monitoring diagnosis and maintenance of control system.
7. Long life span to 20-year, high resale vaule, faster investment
return.
8. Before delivery, all the components assembly, debug, these
preparation work reduced the site adjustment time, ensure the
high-quality of products.
Reach out to us for a complimentary consultation.
