Product Description
CE approved 1000kg 2200lbs Hydraulic lifting winch for cranes /
drilling rig / marine anchor

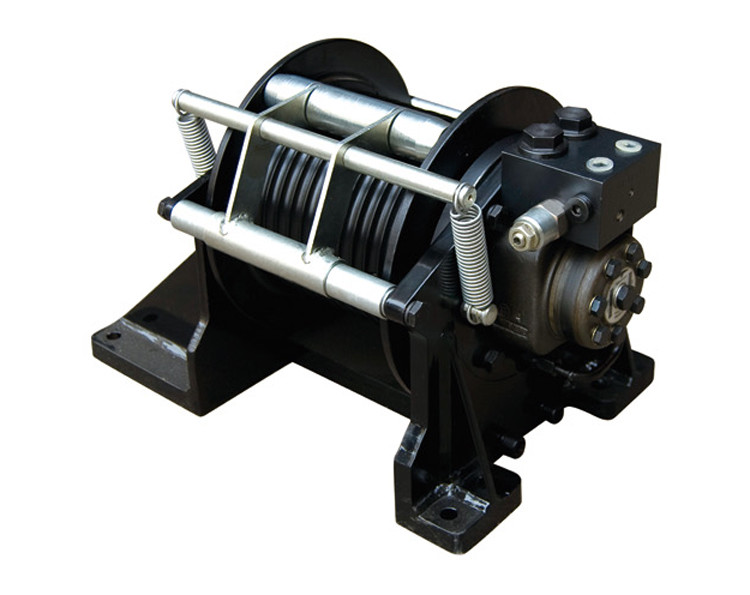

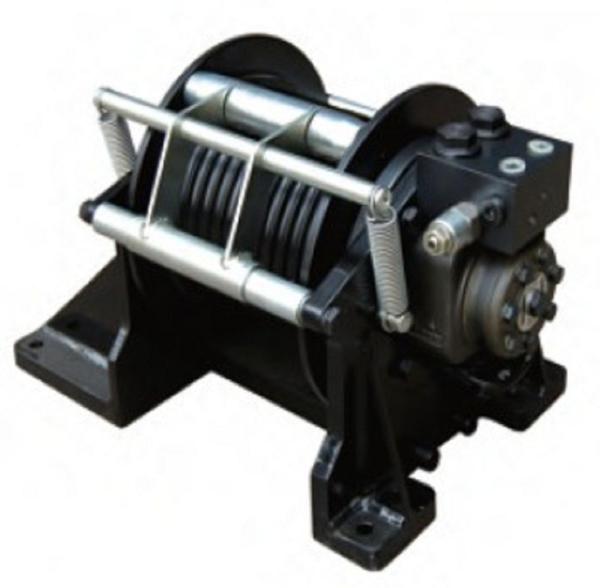

The YT10 is a versatile hydraulic lifting winch that revolutionizes
efficiency and performance with its condensed size, high
transmission efficiency.
The YT10 consists of hydraulic motor, 2-stage planetary gear
reducer, arrester, drum, etc.
Product structural drawing
Contact us for more details!
Performance
| Rated line pull (1st layer) | KN/Kgs / lbs | 10/1000/2200 |
| Line speed (1st layer) | m/min | 18 |
| Response pressure of brake | MPa / Bar | 2.5 / 25 |
| Oil pressure | MPa / Bar | 16 / 160 |
| Oil flow | L/min | 20 |
| Drum diameter x Bottom diameter x Length(internal) | mm | 250*165*170 |
| Drum capacity | m | 24 |
| Suggested high-intensity wire rope diameter | mm | Φ11 |
| Net weight | Kg | 58 |
Features
- Full-float typed planetary gear reducer makes the operation more
stable, the structure more reasonable.
- Adopt multidisc-typed friction normally-closed brake makes the
brake torque larger, safer and more reliable.
- The product is featured by its small size, compact construction and
high transmission efficiency.
- Free spooling function.
- Adopt high efficiently hydraulic motor with long use life.
- The installation bracket can be manufactured according to the
customer's requirement.
- According to the requirement of customers, manufacture the balance
valve and shuffle valve special for this winch.
- Adopt manual, or pneumatic clutch.
Application
We can customize various spec as your request.
Ideal for ues in a variety of engineering requipment and ship board
equipment, such as tow truck, trailer, tractor, Bulldozer, Crawler
truck, and more.
Packing & Shippment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group.
They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance
payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could
recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working
condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
We will always be your service, welcome for your enquiry!
