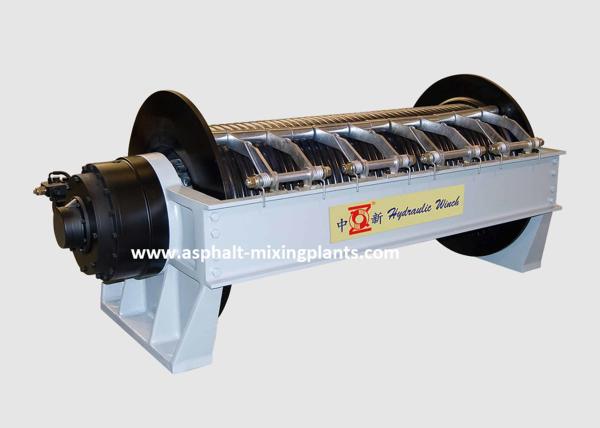

YJP hydraulic anchor winch factory for
tralier,truck,escavador(16ton/35300lbs)
» Brief Introduction
The hydraulic winch is converted into mechanical energy by the
hydraulic energy obtained by the hydraulic motor through the
hydraulic system,and it is decelerated by the planetary reducer to
increase the torsion,which produces a great torque on the drum,and
achieves the purpose of dragging heavy objects by winding the steel
wire rope on the drum.
» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special
vehicles for self-rescue and self-discharge in off-road driving
under difficult road conditions.
It can also be used for lifting and pulling heavy objests in
construction site,such as engineering installation,oil field
drilling,road clearing etc.
It is characterized by compact structure,small size,light
weight,large pulling force,simple installation,flexible
operation,convenient maintenance,and the hydraulic system of the
car itself.
» Performance
| Rated Line Pull(1st layer) | 160KN/16000Kgs/35300Lbs |
| Line Speed(1st layer) | 11M/Min |
| Response Pressure of Brake | ﹤2.5Mpa/25Bar |
| Oil Pressure | 18.5Mpa/185Bar |
| Oil Flow | 137L/Min |
| Drum DiameterxBottom DiameterxLengh(Internal) | 838x550x1422mm |
| Drum Capacity | 450m |
| Suggested High-Intensity Wire Rope Diameter | ∅27mm |
| Net Weight | 2000Kg |
» Product structural drawing
» Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more
stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes
the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction
and high transmission efficiency.
4. Free wire releasing function.
5. Adopt motor with long use life.
6. The installation bracket can be manufactured according to the
customer's requirement.
7. According to the requirement of customers, manufacture the
balance valve and shuffle valve special for this winch.
8. Adopt manual, pneumatic clutch equipment.
» Company Profile
We are the manufacturer,we can save money from middleman.
» FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group.
They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance
payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could
recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working
condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
Reach out to us for a complimentary consultation.
