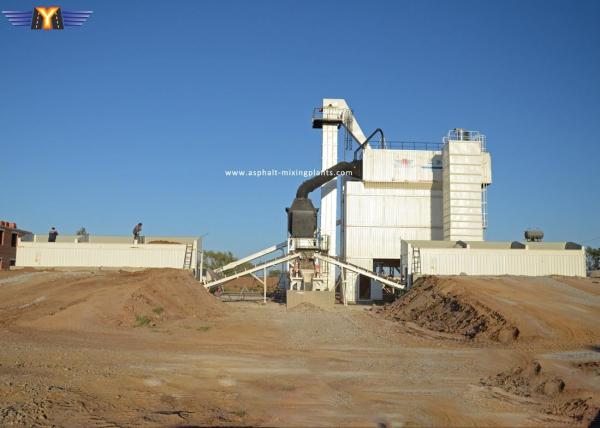

LB-3000 240t/h asphalt batching plant road construction equipment
» Main Application
Asphalt mixing plant, also known as asphalt concrete mixing plant,
refers to the complete set of equipment used for batch production
of asphalt concrete, can produce asphalt mixture, modified asphalt
mixture, color asphalt mixture, is the construction of highways,
grade roads, municipal roads, airports, ports necessary equipment.
» Technical Parameters of Asphalt Mixing Plant
| Main Technical Parameters of CSM240 Asphalt Mixing Plant |
| Model | CSM240 |
| Rated Output (t/h) | 240 |
| Power (kW) | 505 |
| Floor Area (m3) | 38*25 |
| Cold Bin (m3) | 6x12 |
| Burner MW | 19 |
| Fuel | Diesel oil, heavy oil, fuel oil, coal, natural gas |
| Hot Bin (m3) | 53 |
| Row of powder concentration | ≤20mg/Nm3 |
| Mist and dust blackness | Ringelman Blackness: Grade I |
Screen Series | 5 |
| Mixing Capacity (kg) | 3500 |
| Control System | Fully automatic computer control (Industrial PC+PCL+dual color
screen+laser printing+heating and cooling air conditioning) |
» Features of Asphalt Mixing Plant
1. Container Line Transportation
2. BV (BUREAU VERITAS) Certificate
3. 100% ISO Sea Container
4. Reduce nearly 50% of the freight
5. Remote monitoring diagnosis and maintenance of control system
6. Reduce the packing charge, guard against moisture proof, prevent
fouling
7. 22 years of continuous focus on container asphalt mixing station
manufacturing
» Characteristics of mobile asphalt mixing plant
1. Module design makes handling and installation more convenient;
2. The unique design of the mixing blade makes the mixing easier,
reliable and efficient with a very powerful mixing cylinder;
3. The vibrating screen driven by imported vibration motor greatly
improves the efficiency and reduces the failure rate of equipment;
4. The silo bottom type structure is opposite, which greatly
reduces the floor area of the equipment, at the same time cancels
the small lane lifting space of finished materials, and reduces the
equipment failure rate;
LB-3000 240t/h
